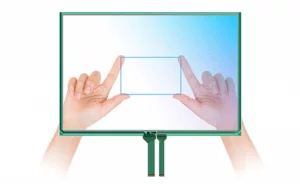

The size lineup of DMC MTR-G series resistive touch screen has been expanded by 17”. The DMC MTR-G series is an 4-wire cell type resistive multi-touchscreen series. Light-load multi-touch for smartphone-like gesture operation. The “MTR-G series” has been expanded by popularity demand.
Analog multi-touch type
A touchscreen with a significantly reduced input load and a controller with a high output rate enable smooth multi-touch gestures even with resistive films.
No blur in operation due to high noise immunity
Compared to capacitance, pressure-sensitive operation eliminates the risk of noise. Multi-touch gesture operation is possible while maintaining the ease of use of resistive film.
Adjust touch sensitivity to suit the environment

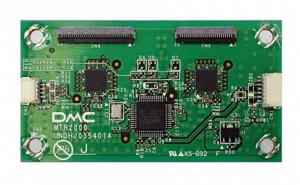

The proprietary controller can be adjusted to scroll the screen with a lighter touch, or to zoom in and out of manuals and drawings with the desired sensitivity.
Size |
Tail Length/ |
Dimension(mm) |
Glass/ Total |
Product Number |
Controller |
Position(mm) |
E : Outline |
Thickness(mm) |
|||
V : View-Area |
|||||
A : Active-Area |
|||||
5.7 |
70/Lower Side |
E : 134.2 x 110.6 |
1.8/2.1 |
||
V : 121.2 x 92.4 |
|||||
A : 117.2 x 88.4 |
|||||
7w |
70/Lower Side |
E : 167.1 x 112.1 |
1.8/2.1 |
||
V : 157.1 x 95.5 |
|||||
A : 152.4 x 91.44 |
|||||
8.4 |
70/Lower Side |
E : 188.4 x 150.5 |
1.8/2.1 |
||
V : 175.4 x 132.8 |
|||||
A : 171.4 x 128.8 |
|||||
10.1w |
100/Lower Side |
E : 231 x 156.2 |
1.8/2.1 |
||
V : 221 x 139.6 |
|||||
A : 216.96 x 135.6 |
|||||
10.4 |
100/Lower Side |
E : 228.5 x 180.9 |
1.8/2.1 |
||
V : 215.5 x 163.2 |
|||||
A : 211.2 x 158.4 |
|||||
12.1 |
100/Lower Side |
E : 263.3 x 207 |
1.8/2.1 |
||
V : 250.3 x 189.3 |
|||||
A : 246 x 184.5 |
|||||
12.1w |
100/Lower Side |
E : 277.92 x 184.4 |
1.8/2.1 |
||
V : 265.62 x 167.7 |
|||||
A : 261.62 x 163.7 |
|||||
15 |
100/Lower Side |
E : 321 x 250 |
1.8/2.1 |
||
V : 308.43 x 232.9 |
|||||
A : 304.1 x 228.1 |
|||||
15.6w |
100/Lower Side |
E : 361.4 x 214.4 |
1.8/2.1 |
||
V : 349.94 x 199.23 |
|||||
A : 345.94 x 195.23 |
|||||
17 |
100/Lower Side |
E : 358.5 x 296.5 |
1.8/2.1 |
||
V : 341.92 x 274.3 |
|||||
A : 337.92 x 270.34 |
|||||
18.5w |
100/Lower Side |
E : 427.6 x 253.9 |
1.8/2.1 |
||
V : 415.6 x 236.2 |
|||||
A : 411.6 x 232.2 |
|||||
21.5w |
100/Lower Side |
E : 500 x 293.2 |
1.8/2.1 |
||
V : 480.64 x 272.11 |
|||||
A : 476.64 x 268.11 |
For more information, please contact Nijkerk Electronics.
