Winstar’s 10.1″ Smart Displays combine high-quality IPS TFT modules (WF101JTYAHLNB0), capacitive touch panels, and 32MB flash memory, designed for quick GUI development. These displays support WINSTAR GUI Builder and STMicroelectronics tools, enabling easy, zero code UI design. They are available with CAN bus, RS485 and UART interfaces.

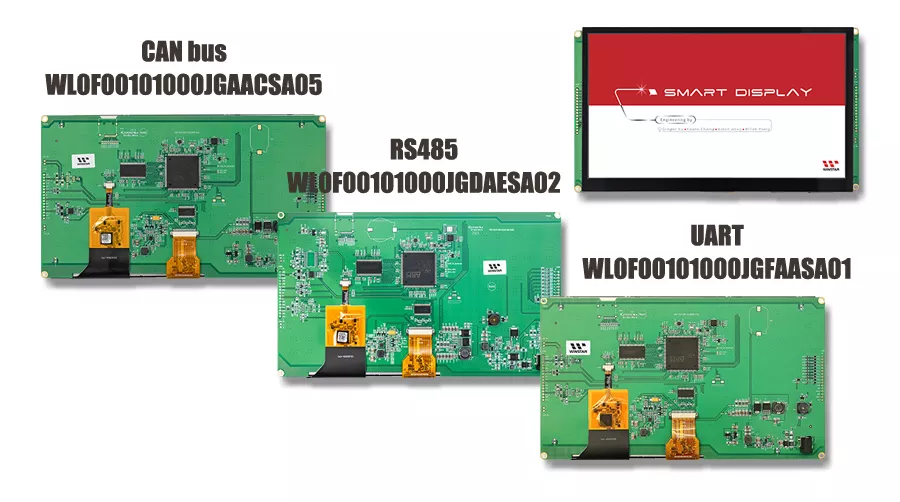

WL0F00101000JGAACSA05
System Interface: CAN bus
Protocol: Custom CAN ID + GPIO
Flash: 32MB
Key Specifications:
- Diagonal Size: 10.1-inch
- Resolution: 1024 × 600 pixels
- Module Dimensions: 248.8 × 143 × 23.2 mm
- Active Area: 222.72 × 125.28 mm
- Viewing Angle: 85/85/85/85 (IPS)
- Operating Voltage: 8~28 Vdc
- Operating Temperature: -20~+70℃
- Storage Temperature: -30~+80℃
- Touch Panel & Brightness: Projected Capacitive Touch Panel (PCAP), 400 cd/m²
Integrated STM32F MCU with built-in firmware. Ideal for industrial automation and vehicle control applications. Supports GUI Builder & TouchGFX for fast UI development.
WL0F00101000JGDAESA02
System Interface: RS485
Protocol: Modbus + GPIO
Flash: 32MB
Key Specifications:
- Diagonal Size: 10.1-inch
- Resolution: 1024 × 600 pixels
- Module Dimensions: 248.8 × 143 × 23.2 mm
- Active Area: 222.72 × 125.28 mm
- Viewing Angle: 85/85/85/85 (IPS)
- Operating Voltage: 8~28 Vdc
- Operating Temperature: -20~+70℃
- Storage Temperature: -30~+80℃
- Touch Panel & Brightness: Projected Capacitive Touch Panel (PCAP), 400 cd/m²
Built-in STM32F MCU firmware. Recommended for industrial instruments, equipment monitoring, and Modbus-based applications. Supports GUI Builder & ST tools for efficient UI creation.
WL0F00101000JGFAASA01
System Interface: UART
Protocol: Proprietary UART + GPIO
Flash: 32MB
Key Specifications:
- Diagonal Size: 10.1-inch
- Resolution: 1024 × 600 pixels
- Module Dimensions: 235 × 143 × 23.2 mm
- Active Area: 222.72 × 125.28 mm
- Viewing Angle: 85/85/85/85 (IPS)
- Operating Voltage: 8~28 Vdc
- Operating Temperature: -20~+70℃
- Storage Temperature: -30~+80℃
- Touch Panel & Brightness: Projected Capacitive Touch Panel (PCAP), 400 cd/m²
User-friendly GUI Builder with real-time simulation on STM32F MCU. Ideal for industrial and smart home applications like smart thermostats, security panels, lighting control systems, and other connected devices.
Common Features
- Integrated with a standard TFT module WF101JTYAHLNB0 for wide viewing angles (85/85/85/85)
- 32MB external flash memory for fonts and object data, enabling dynamic memory allocation
- Self-testing function & embedded buzzer for streamlined prototyping
- Support for GPIO PIN customization
- Projected Capacitive Touch Panel (PCAP)
- STM32F series MCU, compatible with TouchGFX, STM32CubeIDE, STM32CubeMX, and STM32CubeProg
- Flexible host options: Computer, MCU, or Raspberry Pi
- No-code UI design with WINSTAR GUI Builder
Enhanced Memory Management for Complex Applications
The 32MB version offers greater flexibility and power for demanding applications, enabling more complex and responsive UIs:
- Up to 255 objects per page (vs. 64 in the 16MB version)
- Up to 1000 total objects (vs. 500 in the 16MB version)
- Support for up to 64 pages (vs. 30 in the 16MB version)
- Dynamic memory allocation for efficient flash storage managemeny
With its extended memory capacity, the 32MB version is ideal for applications requiring large datasets, interactive elements, or multiple pages. It’s the perfect choice for industrial, automotive, and smart appliance applications.
