Technical Blog: Class X and Class Y capacitors

Many safety regulations mandate that Class X or Class Y capacitors must be used whenever a “fail-to-short-circuit” could put humans in danger, to guarantee galvanic isolation even when the capacitor fails.

Lightning strikes and other sources cause high voltage surges in mains power. Safety capacitors protect humans and devices from high voltage surges by shunting the surge energy to ground.

In particular, safety regulations mandate a particular arrangement of Class X and Class Y mains filtering capacitors.

In principle, any dielectric could be used to build Class X and Class Y capacitors; perhaps by including an internal fuse to improve safety. In practice, capacitors that meet Class X and Class Y specifications are typically ceramic RFI/EMI suppression capacitors or plastic film RFI/EMI suppression capacitors.

Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI) suppression film capacitors, also known as “AC line filter safety capacitors” or “Safety capacitors”, are used as crucial components to reduce or suppress electrical noise caused by the operation of electrical or electronic equipment, while also limited providing protection against electrical shocks.

A suppression capacitor is an effective interference reduction component because its electrical impedance decreases with increasing frequency, so that at higher frequencies they short circuit electrical noise and transients between the lines, or to ground. They therefore prevent equipment and machinery (including motors, inverters, and electronic ballasts, as well as solid-state relay snubbers and spark quenchers) from sending and receiving electromagnetic and radio frequency interference as well as transients in across-the-line (X capacitors) and line-to-ground (Y capacitors) connections. X capacitors effectively absorb symmetrical, balanced, or differential interference. On the other hand, Y capacitors are connected in a line bypass between a line phase and a point of zero potential, to absorb asymmetrical, unbalanced, or common-mode interference.

RFI/EMI suppression with X- and Y-capacitors for equipment without and with additional safety insulation

Appliance Class I capacitor connection

Appliance Class II capacitor connection

EMI/RFI suppression capacitors are designed and installed so that remaining interference or electrical noise does not exceed the limits of EMC directive EN 50081 Suppression components are connected directly to mains voltage semi-permanently for 10 to 20 years or more, and are therefore exposed to overvoltages and transients which could damage the capacitors. For this reason, suppression capacitors must comply with the safety and inflammability requirements of international safety standards such as the following:

  • Europe: EN 60384-14,
  • USA: UL 60384-14, UL 1283
  • Canada: CAN/CSA-E60384-14, CSA C22.2, No.8
  • China: CQC (IEC 60384-14)
  • Korea: KC K60384-14

RFI capacitors which fulfil all specified requirements are imprinted with the certification mark of various national safety standards agencies. For power line applications, special requirements are placed on the inflammability of the coating and the epoxy resin impregnating or coating the capacitor body. To receive safety approvals, X and Y powerline-rated capacitors are destructively tested to the point of failure. Even when exposed to large overvoltage surges, these safety-rated capacitors must fail in a fail-safe manner that will not endanger personnel or property.

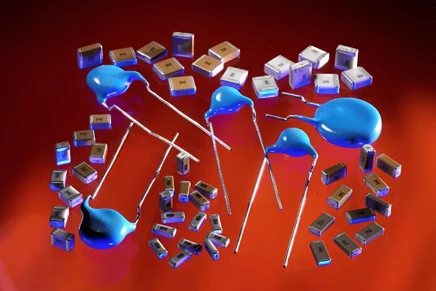

EMI/RFI suppression film capacitors are metallized polypropylene (PP) film capacitors or ceramic capacitors leaded single layer discs or SMD sizes from 1808 to 2825.

The Nijkerk Electronics suppliers has film capacitors (Faratronic) and ceramic capacitors (Holystone) available, you can find datasheets and application information on the website;



Contact Nijkerk Electronics for more details or technical information.
