Winstar has released the “Winstar Smart Display Can Series”. This new innovation offers an out-of-the-box CanOpen development experience that will lower your development costs and speed up your time-to-market expectations. The CanTFT comes with standard UI objects to get customer projects off the ground quickly. If customers need custom UI objects support, this is possible as well.
Winstar offers LCD/TFT solutions that ensure reliable communication over distances up to one hundred feet and they also come equipped with daisy chain topology capabilities. Additionally, Winstar CanTFT provides the option of an IPS TFT display with a wider viewing angle.
Winstar can offer almost unlimited combinations to support your user experience requirements. They have to ability to mix-and-match different 8 ~ 12 LCDs with their CanTFT platform. The wide-temperature varieties are designed to support control applications in harsh operating conditions such as automotive, marine, power generation and oil-and-gas.
Why Choose CAN Bus Interface
The CAN (Controller Area Network) communication interface was first developed by Bosch in the 1980s in order to respond to the increasing number of electronic devices used in new cars. The CAN bus can connect and control the entire control system through the simple serial interface.
CANopen is a communication protocol and device profile specification for embedded systems which are commonly used in passenger vehicles, industrial automation, mechanical control, elevator, escalator, electronic equipment for aviation and navigation. Winstar Smart Display CanTFT series already built in object dictionary on module.

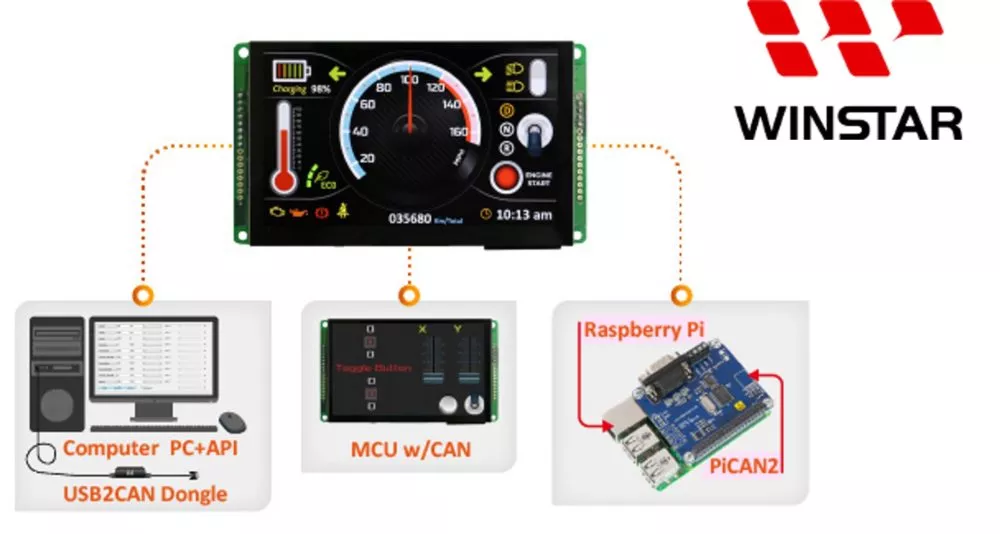

Speed time-to-market by using Smart Display CanTFT Series
Customers can take the advantage of using Winstar Smart Display CanTFT Series products. Below is the comparison of adopting the Smart Display CanTFT series.
Without Using Smart Display CanTFT:
- The user interface (widgets) & functions need to design coding by users.
- Users need advanced coding skills.
- Customers develop products will take a longer time.
Using Smart Display CanTFT :
- The user interface are well defined as objects.
- Get started quickly, suitable for fast and easy integration of a HMI into any application.
- Just adopt scripts to control on/off or give a value for objects.
- Design the UI without writing a line of code by winstar GUI builder!
Winstar launches various sizes in CANbus interface “with different protocols”
SmartDisplay new products – Custom CAN ID\

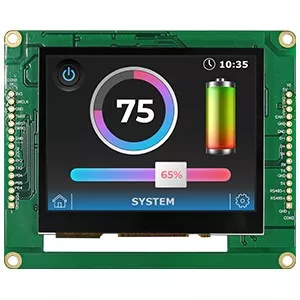

WL0F00035000XGAABSA00
■ Size：3.5 inch
■ Resolution：320×240 dots
■ View Direction：80/80/80/80 (IPS)
■ Touch Panel：Capacitive Touch Panel
■ Communication Interface：CAN bus
■ Brightness(cd/m²)： 400

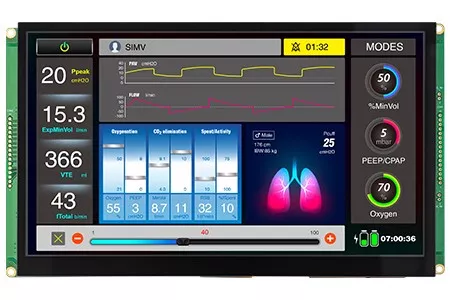

WL0F0007000A8GAACSA00
■ Size：7 inch
■ Resolution：1024×600 dots
■ View Direction：85/85/85/85 (IPS)
■ Touch Panel：Capacitive Touch Panel
■ Communication Interface：CAN bus
■ Brightness(cd/m²)：450

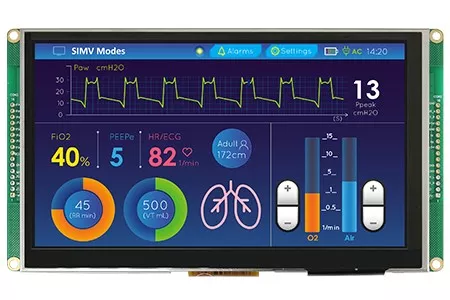

WL0F00050000FGAADSA00
■ Size：5 inch
■ Resolution：800×480 dots
■ View Direction：80/80/80/80 (IPS)
■ Touch Panel：Capacitive Touch Panel
■ Communication Interface：CAN bus
■ Brightness(cd/m²)：400
SmartDisplay new product – Custom CAN ID+GPIO

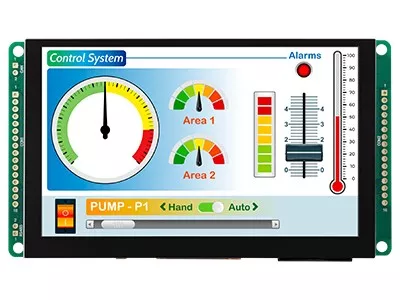

WL0F00101000JGAACSA00
■ Size：10.1 inch
■ Resolution：1024×600 dots
■ View Direction：85/85/85/85 (IPS)
■ Touch Panel：Capacitive Touch Panel
■ Communication Interface：CAN bus
■ Brightness(cd/m²)：400
SmartDisplay new product – CANopen

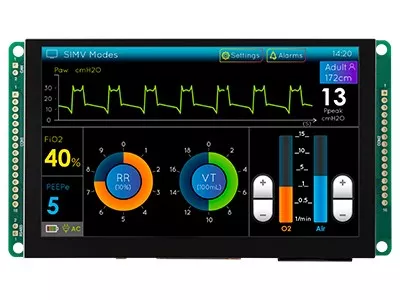

WL0F00050000FGAACSA01
■ Size：5 inch
■ Resolution：800×480 dots
■ View Direction：80/80/80/80 (IPS)
■ Touch Panel：Capacitive Touch Panel
■ Communication Interface：CAN bus
■ Brightness(cd/m²)：750
If you want more information about the solutions Winstar can offer or if you have any questions, please contact Nijkerk Electronics!
