Cost-Effective and Reliable Displays from Winstar with Professional Backlight Module Design Solution

|29 September 2022

Backlight Module (BLM), also known as backlight panel, is one of the essential components of Monochrome LCD displays. Since the liquid crystal display is not self-illuminating, the light source must be provided through the backlight module, penetrating the liquid crystal panel in sequence. Finally, it enters the human eye to form an image to achieve the display function. The Monochrome LCD backlight module structure usually comprises the LED light source, light guide plate, and diffuser components. The primary part of the light guide plate is to guide the direction of light, improve the panel’s brightness and control the uniform brightness.

The light guide plate is commonly made of polycarbonate (PC) or optical grade acrylic material (PMMA). The specific light guide dot layout has been made into an injection mold block (stamper) to adopt the injection molding process. During the injection molding, the dot distribution of the light guide plate is completed at once.

The diffuser’s function is to make the light distribution more uniform, and the function of the reflector is to reflect the light from the bottom back into the light guide plate. At the same time, it is necessary to prevent the possibility of leakage of the light source to increase the efficiency of the emitted light. Currently, the most commonly used backlight module is the edge type, the light source is arranged on the side of the light guide plate, and the light source enters the edge of the light guide plate and transmits it to the screen through the light guide plate.

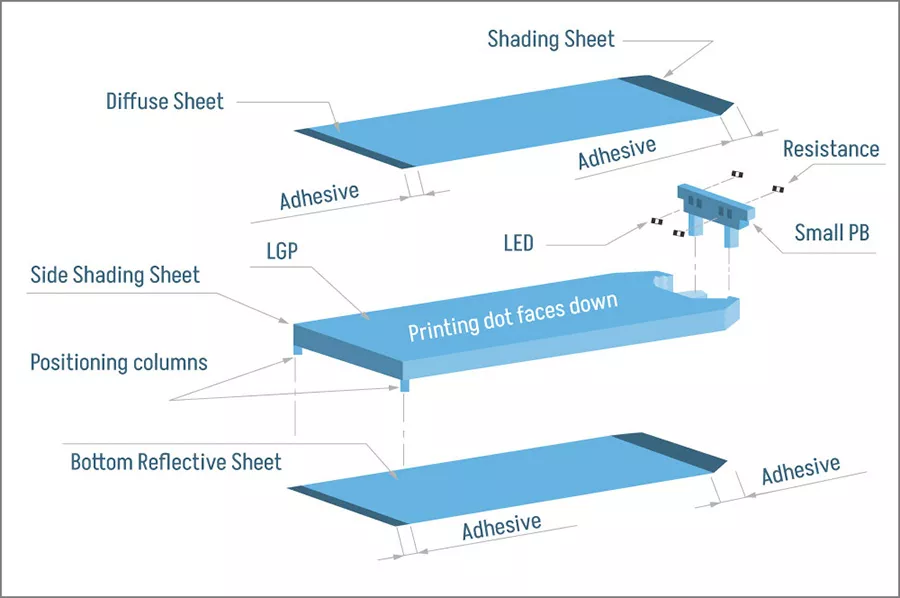

Figure 1: Structure of side-projection backlight module


For the design of the side-projection backlight module, it is also necessary to consider the mechanical design and the actual performance requirements of customers. In the design of the backlight mechanism, there’re two light guide plate forming techniques that can be selected, such as single-material, single-mold injection as shown in Figure 2(a), or double-material double-mold injection as shown in Figure 2(b).

(a) (b)
Figure 2: Types of Backlight Modules


To have both the light guide effect and mechanism positioning function on a light guide plate, a single-material, single-mold injection design can be adopted, including positioning columns and walls, all of which are light-guiding objects.

Advantages: Single mold has a lower material cost.

(a) There will be light leakage outside the viewing area, such as walls and positioning columns of the light guide plate.
(b) The brightness is a bit lower under the same backlight size.
(c) If the customer has a complex mechanism positioning method, then the light guide plate cannot be produced by one pair of molds.

Suggestion: It can be used when the project is low-cost oriented. Customers can adjust the design of their device mechanism accordingly to avoid seeing the light outside the viewing area.


If the customer needs a light guide plate design that will not leak light and is easy to use, double-material, double-mold injection is a good choice, and two injection molds are provided for the light guide plate and the mechanical frame.

(a) There will be no light leakage outside the viewing area. For example, you will not see the light on walls and positioning columns of the light guide plate.
(b) Under the same backlight size, the brightness is slightly higher than that of the single-material, single-mold injection structure.
(c) Customers can have more complex mechanism positioning design.

Disadvantages: The cost of double molds is higher.

Suggestion: It is suitable for use if no light is allowed outside the viewing area of the customer’s mechanism or if clients’ projects require higher brightness. The comparison between the single-material, single-mold injection light guide plate and the double-material, double-mold injection light guide plate is shown in Table 1.

Single-material, single-mold injection light guide plate Double-material, double-mold injection light guide plate
Figure 3-1

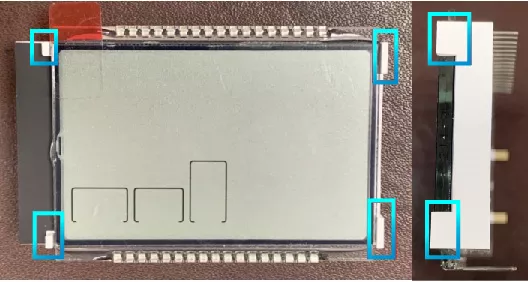

The positioning column is transparent, and there is a reflective sheet behind the backlight.
Figure 4-1
The positioning column is opaque, and no reflective sheet is added behind the backlight because the plastic frame is opaque.
Figure 3-2
Add reflective tape to the sides
Figure 4-2
No need to add reflective tape on the sides
Figure 3-3
The light guide plate and the positioning columns are integrally formed.
Figure 4-3
The light guide plate and the plastic frame are two separate materials.
Figure 3-4 Figure 4-4
Figure 3-5
There will be light on the positioning columns and the side walls.
Figure 4-5
There will be no light on the side walls and the positioning columns.
Figure 3-6
There is reflective tape on the sides, and there will still be light leakage.
Figure 4-6
No light leakage.
Figure 3-7
Even if there is a reflective sheet on the bottom, there will still be a little light through.
Figure 4-7
The bottom is a plastic frame, so it is opaque.

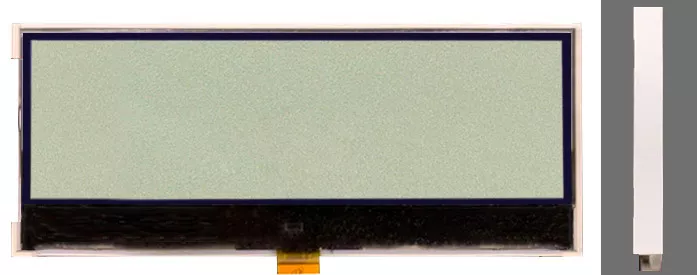

If customers are looking for a backlight with no light leakage, easy mechanism combination, and protection of LCD design, double-material, double-mold injection is a perfect solution. And a four-sided wall design can be added to the mechanism frame (as shown in Figure 5). If the space of the device mechanism is limited, the wall can be designed for the space on both sides (as shown in Figure 6).

The advantages of adding a frame wall design are as follows:

  1. Protect around the LCD
  2. The backlight walls are higher than the LCD surface, and the customer will not directly press the glass after assembly, which can avoid the possibility of glass breakage.
  3. The backlight and LCD are easy to align, increasing the accuracy of the position of the mechanism.
  4. It can avoid the possibility of separation of glass and backlight and displacement of LCD and backlight due to vibration during transportation.


Figure 5: Four-side wall light guide plate


Figure 6: Two-side wall light guide plate

If you want more information or if you have any questions about this product, please contact Nijkerk Electronics!
