NIPPON Chemi-Con introduces the world’s first Hybrid Capacitor with Ultimate Structure (AEC-Q200 compliant)

In recent years, the automotive electronics market has required high heat resistance, long life, and high vibration resistance, while the communications and industrial equipment markets have required high reliability and long life to achieve high environment resistance.

Nippon Chemi-Con has developed HXU series adopted new generation platform Ultimate StructureTM. to achieve high  environment resistance.

Feature

Series

HXU

Endurance

135℃ 8,000hrs (with ripple current)

Voltage

25 〜 63Vdc

Capacitance

82 〜 330µF

Size

⌀10×10L

Vibration
Resistance

40G (10~2kHz X,Y,Z 2hrs each)*1
*1: with vibration resistant structure

AEC-Q200

Compliant

Recommended Application
  • Automotive electronics(DC-Link)
  • Power supply for Base station(Infrastructure)
  • Other high temp, long-life or high vibration resistance required conditions.
Position of the Series

HXU has adopted Ultimate StructureTM., lifetime of hybrid capacitor has drastically increased.
In addition, with vibration resistant structure, we guaranteed vibration resistance of 40G.

[Comparison by Series: 35Vdc, φ10×10L]



HXU Series

HXE Series

HXF Series

Capacitance

330µF

270µF

270µF

Endurance
(135℃ DC)

8,000 hrs

4,000 hrs

4,000 hrs

Rated Ripple Current
(100kHz)

3,300mArms

2,000mArms

3,300mArms

Vibration
(with vibration resistant structure )

40G

30G

30G



  • Lifetime

  • Vibration resistance


Furthermore, HXU has higher heat resistance for reflow than conventional products.


  • Comparison by reflow profile

Series

Size

Time maintained

Peak Temp.

Reflow number

Above 217℃

Above 230℃

HXU

⌀10×10L

50 sec max.

40 sec max.

260℃

2 times

245℃

3 times

HXF

⌀10×10L

50 sec max.

40 sec max.

260℃

1 times

245℃

2 times

Key Technologies and Advantage

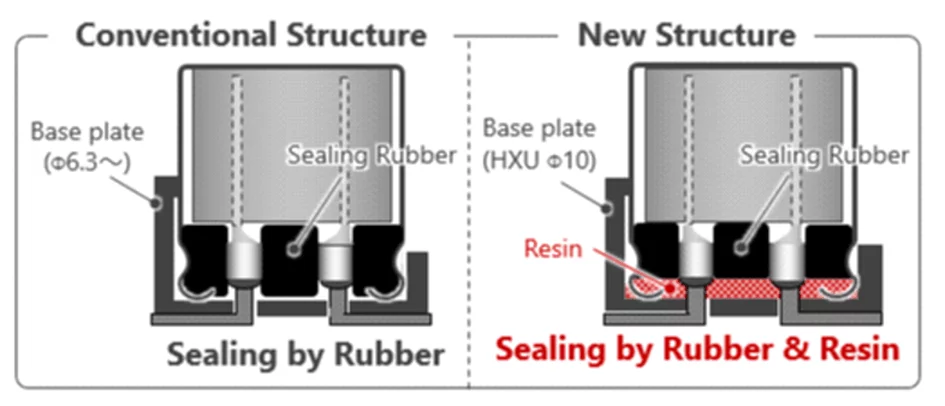

  • Ultimate StructureTM. Sealing by Resin and Rubber*1
    The composite sealing technology is suppressed electrolyte evaporation which is cause of deterioration the electrical characteristics of aluminum electroritic capacitors.
    *1: Patent pending

  • New structure
    With combination of patent pending sealing technology and vibration resistant structure, we achieved high vibration resistance ever.

Ultimate StructureTM. Related Item
  • SMD Aluminum Electrolytic Capacitors: MHU Series
Conductive Polymer Hybrid Aluminum Electrolytic Capacitors Lineup

Other than HXU series, Nippon Chemi-Con has wide range line-up of 16v to 80v Hybrid capacitors.
Please consider for applications such as automotive, base station and industrial equipment.

For more information, please contact Nijkerk Electronics.
