Chemi-Con upgrades KHU, LHU and LXU capacitors

|26 June 2024

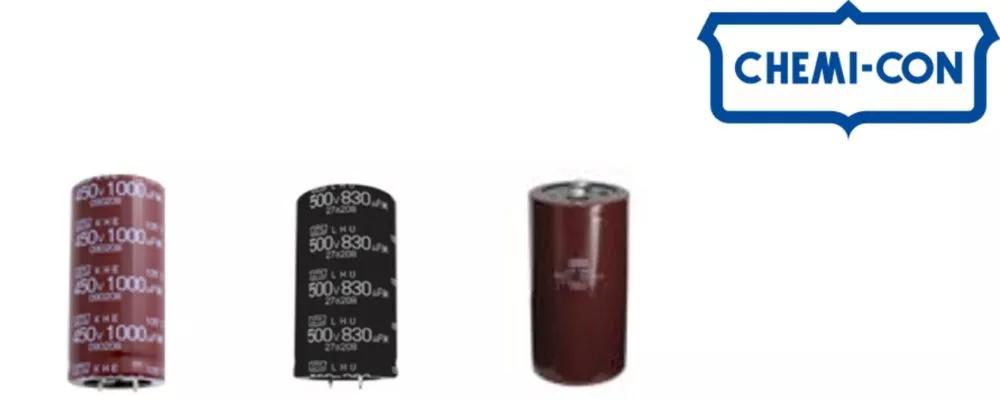

Chemi-Con is continuously dedicated to the development and advancement of its capacitors. Recently the KHU, LHU and LXU series have been updated.

KHU

A lineup of products is available with a maximum rating voltage of 500 V and a product height of 80 mm, designed for data center servers and new energy storage devices requiring high voltage and large capacity. To increase the capacitance of high-voltage products, newly developed electrode foils have been adopted. These products have a guaranteed operating life of 3,000 hours at 105 °C.

  • Lineup of high withstand voltage products for server power supplies and
    solar power generation applications
  • Endurance with ripple current : 3,000 hours at 105℃
  • Rated voltage range:400 to 500V, Capacitance range:120 to 1,910µF
  • Non solvent resistant type
  • RoHS2 Compliant

More information can be found on the datasheet.

LHU

A lineup of products is available with a maximum rating voltage of 500 V and a product height of 80 mm, tailored for data center servers and new energy storage devices that require high voltage and large capacity. To increase the capacitance of high-voltage products, newly developed electrode foils have been adopted. The guaranteed operating life is 5,000 hours at 105 °C.

  • Lineup of high withstand voltage products for server power supplies and
    solar power generation applications
  • Endurance with ripple current : 5,000 hours at 105℃
  • Rated voltage range:400 to 500V, Capacitance range:120 to 1,910µF
  • Non solvent resistant type
  • RoHS2 Compliant

More information can be found on the datasheet .

LXU

A lineup of DC link capacitors has been created for servo amplifiers, general-purpose inverters, and motor drives requiring large capacity and high ripple current. By adopting a new electrode foil and optimizing the design, higher capacity and higher ripple current have been achieved compared to conventional products (LXA series). These capacitors are suitable for frequent changes in regenerative voltage from AC servo amplifiers and inverter control.

  • High capacitance and high ripple current from LXA series
  • Endurance with ripple current : 5,000 hours at 105℃
  • For frequently change of regenerative voltage from AC servo amplifi er and inverter control.
    RoHS2 Compliant
  • The logo printed on the sleeve will be changed

More information can be found on the datasheet.

If you want more information or if you have any questions about this product, please contact Nijkerk Electronics!
