Winstar WF50FSYBGDSGA – 5 inch High Brightness SPI 800×480 IPS TFT with PCAP Touch

|30 May 2022

WF50FSYBGDSGA from Winstar is a 5-inch High Brightness IPS TFT-LCD display with a Capacitive Touch screen (PCAP) resolution of 800×480 pixels. This module is built-in with BT815 controller IC, and it supports SPI and QSPI interfaces. The QSPI interface can achieve four times data rate compared with the current SPI interface and make a smoother display accordingly. The series of BT815/6 controller IC with EVE (Embedded Video Engine) technology simplifies the system architecture, Eve technology is a revolutionary concept that utilizes an object-oriented approach to creating high-quality human-machine interfaces (HMI). This new technology supports display, audio and touch, enabling engineers to quickly and efficiently design HMI and provide a powerful solution for high-resolution displays that reduce material costs.

WF50FSYBGDSGA is adopted IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), brightness 750 nits (typical value), glare surface panel, aspect ratio 5:3. The PCAP touch screen is built-in with ILI2130 IC, supporting I2C interface and multi-touch function. The WF50F SPI series also has a resistive touch panel (RTP) option.

The control signal for WF50FSYBGDSGA is 3.3V; it has a built-in storage device (FLASH 32M); without MicroSD Socket. If customers require the control signal to be 5V for the Arduino board, don’t hesitate to contact us. WF50F model can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃.




5 inch

Dot Matrix

800× 3(RGB) × 480 mm

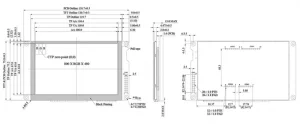

Module dimension

138.7 (W) x 75.8 (H) x 13.0(D) mm

Active area

108(W) ×64.8 (H) mm

Pixel pitch

0.135(W) ×0.135(H) mm

LCD type

TFT, Normally Black, Transmissive

View Direction


Aspect Ratio


Backlight Type

LED,Normally White

TFT Controller IC


TFT Interface



ILI2130 or Equivalent

CTP Interface


CTP FW Version


CTP Resolution


Touch Panel

Projected Capacitive Touch Panel (PCAP)



If you want more information or if you have any questions, please contact Nijkerk Electronics!
