Winstar 0.96″ Dual Color OLED with PCB

|24 August 2020

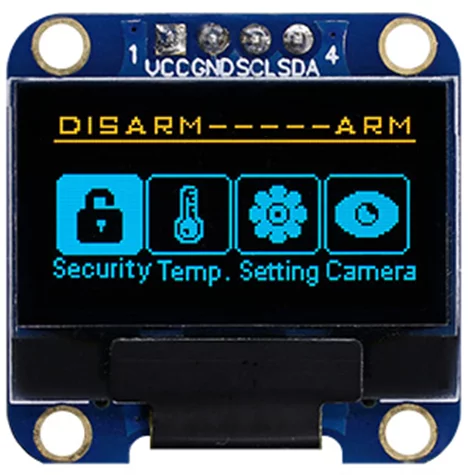

The Winstar WEA012864MX is a COG 0.96″ Dual Color OLED with PCB board on module. The module is built in with SSD1306 IC; it supports I2C interface, 1/64 driving duty, supply voltage for Logic 5V, optional 3.3V, with conversion circuit. WEA012864MX model is having PCB outline size 27.3 × 27.3 mm with mounting holes on board and 4×1 metal pins on module. The standard color is yellow/sky blue only, without any other color options.

The OLED module is suitable for smart home application, medical device, smart control, meter, etc. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



Dot Matrix

128 × 64 Dots

Module dimension

27.3 × 27.3 × 2.72 mm

Active Area

21.744 × 11.204 mm

Pixel Size

0.148 × 0.148 mm

Pixel Pitch

0.17 × 0.17 mm

Display Mode

Passive Matrix OLED

Display Color

Dual Color: Yellow / Sky Blue

Drive Duty

1/64 Duty






0.96 inch
