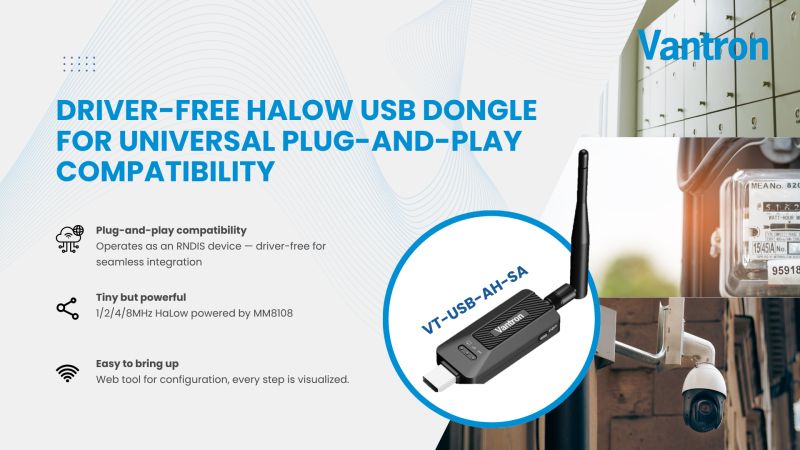

As Wi-Fi HaLow continues to gain traction for long-range, low-power wireless networking, integrating this technology into existing systems has often required dedicated hardware support or complex driver installations. The new VT-USB-AH-SA Standalone Wi-Fi HaLow USB Dongle from Vantron removes these barriers by delivering true plug-and-play Wi-Fi HaLow connectivity through a standard USB interface.
Powered by the latest Morse Micro MM8108 chipset, the VT-USB-AH-SA combines high performance, low power consumption, and universal compatibility in a compact form factor, making it an ideal connectivity upgrade for a wide range of IoT and industrial applications.
True Plug-and-Play Wi-Fi HaLow
Designed as a standalone USB dongle, the VT-USB-AH-SA operates as an RNDIS device, enabling driver-free operation across all mainstream operating systems. Simply connect the dongle to any compatible USB host, and Wi-Fi HaLow connectivity is immediately available. No additional software installation is required.
Configuration is equally straightforward thanks to an integrated browser-based Web UI, allowing users to configure network settings quickly without specialized tools.
Powered by the Morse Micro MM8108
At the heart of the VT-USB-AH-SA is Morse Micro’s latest-generation MM8108 Wi-Fi HaLow chipset. The platform supports worldwide Sub-1 GHz frequency bands and delivers improved integration density while reducing power consumption compared to previous generations.
The dongle supports four channel bandwidth options (1, 2, 4, and 8 MHz), with single-stream data rates reaching up to 43.33 Mbps at 8 MHz bandwidth. In real-world testing, average TCP throughput exceeds 16 Mbps, providing ample bandwidth for demanding IoT applications.
Long-Range, Reliable Connectivity
Wi-Fi HaLow operates in Sub-1 GHz frequency bands, providing significant advantages over traditional 2.4 GHz and 5 GHz Wi-Fi technologies. These lower frequencies enable:
- Coverage of up to approximately 1 km under suitable conditions
- Superior penetration through walls, buildings, and other obstacles
- Lower power consumption for battery-powered devices
- Reliable communication in challenging RF environments
These characteristics make the VT-USB-AH-SA particularly well suited for large-scale IoT deployments where conventional Wi-Fi struggles to provide sufficient coverage.
Flexible Network Deployment
The VT-USB-AH-SA supports multiple operating modes, allowing it to fit seamlessly into a wide variety of network architectures:
- Station (STA) mode
- Access Point (AP) mode
- Mesh networking
Whether extending an existing HaLow network, creating a standalone wireless infrastructure, or building resilient mesh deployments, the dongle offers the flexibility required for modern IoT solutions.
Enterprise-Grade Security
Security remains a key consideration for connected devices. The VT-USB-AH-SA incorporates a comprehensive security framework, including:
- WPA3 authentication
- Protected Management Frames (PMF)
- Opportunistic Wireless Encryption (OWE)
- Hardware-accelerated AES encryption
- SHA-1 and SHA-2 hashing (SHA-256, SHA-384, SHA-512)
These capabilities help ensure secure communication across industrial and commercial deployments.
Built for IoT Applications
With its compact design, universal USB compatibility, and long-range wireless performance, the VT-USB-AH-SA is an excellent solution for applications such as:
- Industrial automation
- Smart metering
- Environmental monitoring
- Smart agriculture
- Surveillance systems
- Building automation
- Remote sensing
- Asset monitoring
The combination of driver-free operation and flexible deployment significantly reduces integration time, allowing developers and system integrators to add Wi-Fi HaLow connectivity to existing hardware with minimal effort.
Key Specifications
- Morse Micro MM8108 Wi-Fi HaLow chipset
- IEEE 802.11ah compliant
- Worldwide Sub-1 GHz operation (850–950 MHz)
- USB 2.0 Type-A interface
- Driver-free operation on mainstream operating systems
- Up to 43.33 Mbps PHY data rate (8 MHz)
- Average TCP throughput above 16 Mbps
- Station, Access Point, and Mesh support
- Browser-based Web UI configuration
- Compact dimensions: 86.9 × 30 × 13 mm (excluding antenna)
- Operating temperature: -20°C to +70°C
Bringing Wi-Fi HaLow to Any USB Device
The VT-USB-AH-SA makes adding Wi-Fi HaLow connectivity remarkably simple. By combining driver-free plug-and-play functionality, long-range Sub-1 GHz communication, enterprise-grade security, and the performance of Morse Micro’s MM8108 chipset, it offers a practical solution for developers, OEMs, and system integrators looking to accelerate their next generation of IoT products.
If you want more information or if you have any questions, please contact Nijkerk Electronics!
