Circular COG LCD Display USB – Demo Kits Available

|15 September 2020

Winstar WO128128A is a circular monochrome COG graphic LCD module made of 128×128 dot matrix format. This Round COG LCD module is built in with ST75161 IC; it supports 8080/6800 parallel, 3-wire and 4-wire serial SPI, I2C interface, Viewing Direction 6 o’clock, 1/136 driving duty, 1/12 BIAS.

The supply voltage for logic of WO128128A is 2.7V to 3.3V, typical value 3V. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO128128A is available in FSTN Negative (WO128128A-TDI) and FSTN positive LCD type with white LED backlight (WO128128A-TFH). The USB demo kits are available now; please contact Nijkerk Electronics. for USB sampling or quotation.

Demo kit P/N: WWSTNUSBDEMO-00 for WO128128A-TFH LCD module
Demo kit P/N: WWSTNUSBDEMO-01 for WO128128A-TDI LCD module

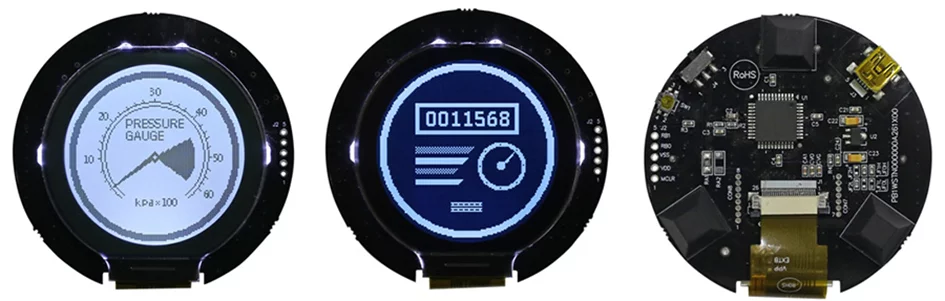

USB Demo Kits:
