5″ MIPI Portrait IPS High Brightness TFT WF50DSYA3MNN0

03 June 2019

Winstar Display WF50DSYA3MNN0 is a High Brightness 5 inch IPS TFT-LCD module with resolution of 720×1280 pixels. This TFT-LCD is featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and high brightness 1100 nits (typical value).

This WF50D 5 inch module is a portrait mode IPS TFT-LCD; this module is built in with ILI9881C driver IC; it supports MIPI interface (Mobile Industry Processor Interface) DSI (Display Serial Interface) which is having the characteristics of High Speed Data Transmission and High Speed Clock Transmission. This TFT display featured with Glare surface panel; aspect ratio 16:9, it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

For more information contact Nijkerk Electronics




5 inch

Dot Matrix

720 × 3(RGB) × 1280

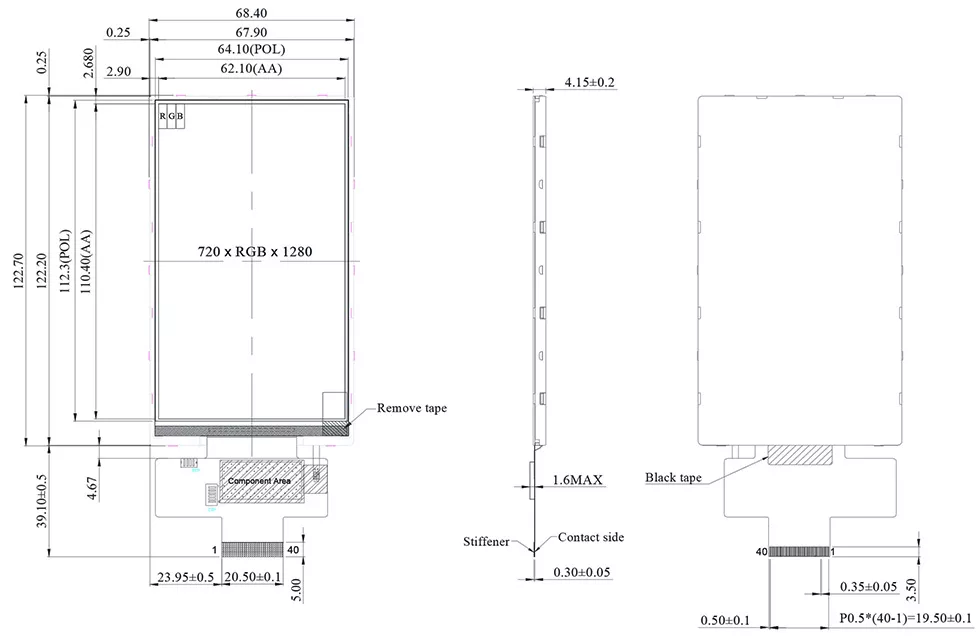

Module dimension

68.4 (W) × 122.7 (H) × 4.15 mm

Active area

62.1 (W) × 110.4 (H) mm

Dot pitch

0.08625(W) ×0.08625(H) mm

LCD type

TFT, Normally Black, Transmissive

Viewing angle

80/80/80/80  IPS

TFT Drive IC

ILI9881C  or Equivalent

TFT Interface


Aspect Ratio


Backlight Type

LED, Normally White

With /Without TP

Without Touch Panel



WF50DSYA3MNN0Source: Winstar
