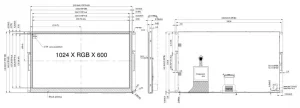

WL0F00101000JGAAASA00 model is a 10.1 inch SmartDisplay CAN series TFT display that runs CANopen protocol via CAN bus command to render display content on the screen and return touch event data with protocol objects. WL0F00101000JGAAASA00 model is integrated with a standard 10.1 inch IPS TFT module WF101JTYAHLNB0 and a 4-layers PCBA with built-in firmware code which is developed by Winstar RD team. This 10.1″ SmartDisplay CAN series TFT is an easy-to-use product that allows customers to create their UI without cost-effectively writing a line of code. This 10.1” SmartDisplay can use a computer with USB2CAN dongle or Raspberry Pi (+PiCAN2) or even an MCU scale like Arduino (+CAN adaptor) as HOST platform.
Winstar already developed Windows Apps (GUI & GUI Builder) for SmartDisplay GUI design. Winstar GUI builder software is designed for customers to simulate their UI design in advance by using the drag-and-drop Widget preview function. Furthermore, customers can create their ideal UI objects using this software and then go through simulation to check UI design without hardware module. Winstar GUI builder software supports Windows systems only; it can fulfill What You See Is What You Get (WYSIWYG).
Winstar SmartDisplay CAN Series offers an out-of-the-box CANopen development experience to lower customer development costs and speed up the time-to-market expectations. The CanTFT comes with standard UI objects to quickly get the customer’s project. If customers need custom UI objects supporting, Winstar engineers are there to help.
Winstar SmartDisplay CAN Series is a “smart” choice for customers. There are many essential features and functions for this new released 10.1″ SmartDisplay CAN TFT as below:
- DC 12V working voltage
- 1″ WF101JTYAHLNB0 IPS TFT
- Power-On Self-Test & Splash screen
- CAN bus communication Interface
- Supports CANopen protocol, default baud rate at 250KB
- Built-in flash memory, store the font and Object Dictionary Data
- Supports Projected Capacitive touch screen (PCAP)
- Long transmission distance
- Strong anti-interference ability
- Built-in Buzzer
- Supports Multi-master
- Operating temperature -20℃~70℃
- Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)
|
If you want more information or if you have any questions, please contact Nijkerk Electronics!
