Winstar adds 128×128 COG Graphic LCD Display Module

|16 mei 2023

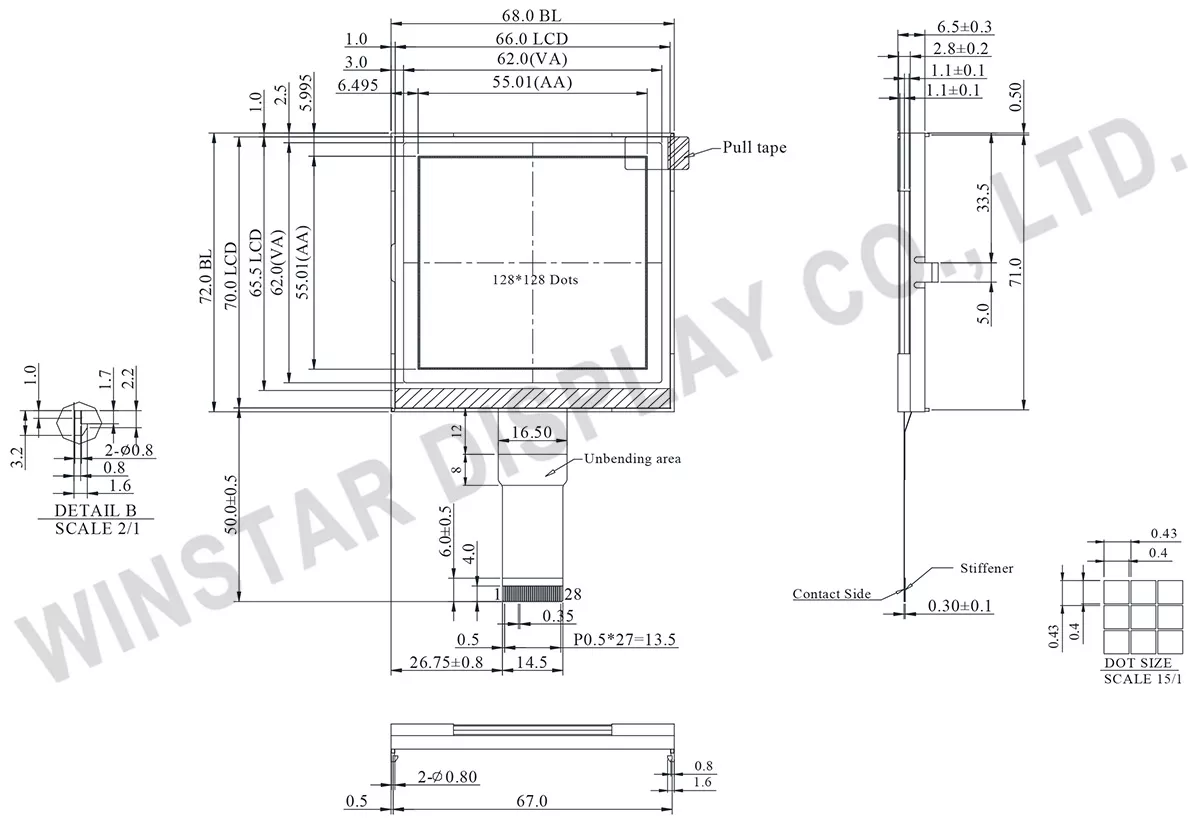

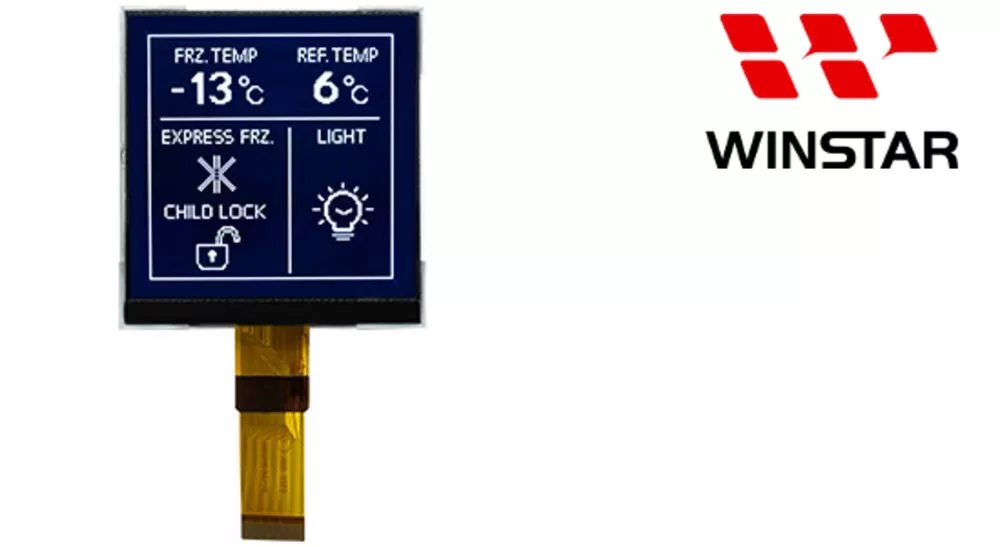

Winstar has added a 128×128 monochrome graphic COG LCD module, the WO128128B. The dimensions of the display are 68.0x72mm and the Active Area size is 55.01 x 55.01 mm. The module uses the built-in controller ST75161 IC, which supports 6800/8080/SPI/I2C interfaces, a 3.3V power supply, 1/128 DUTY, and 1/12 BIAS.

This monochrome display can be operated at temperatures ranging from -20℃ to +70℃, and its storage temperature ranges from -30℃ to +80℃.

WO128128B specifications:

  • COG LCD Display
  • Graphic LCD
  • 128×128 dots
  • Built-in controller ST75161
  • 3.3V power supply
  • 1/128 DUTY, 1/12 BIAS
  • interface: 6800/8080/SPI/I2C

If you want more information or if you have any questions, please contact Nijkerk Electronics!
