Winstar 5″ PCAP IPS TFT for HDMI Signal

|25 augustus 2021

Winstar 5″ PCAP IPS TFT for HDMI Signal

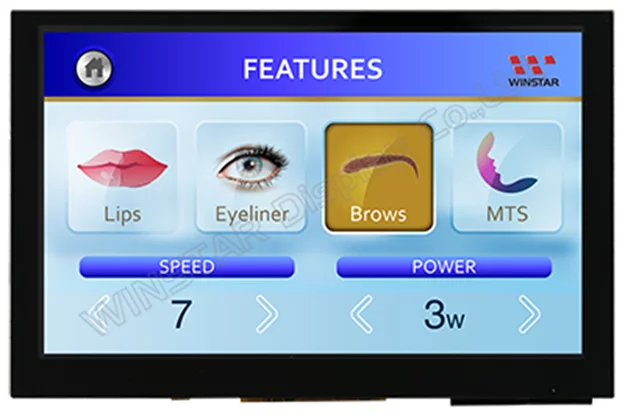

Winstar WF50FSYFGDHGV is an IPS 5 inch High Brightness 800×480 TFT-LCD module with Capacitive Touch Panel (PCAP). WF50FSYFGDHGV comes with a control board which only supports Raspberry PI system HDMI Signal interface (only DVI). There is a 40-pin GPIO connector on the control board which is designed to make Raspberry Pi usage easy. The control board on module is featured with four mounting holes which is an easy method for customers to fix modules on their applications. WF50FSYFGDHGV adopts an IPS panel which has a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The brightness is 750 nits (typical value); the Capacitive Touch Panel is built in with ILI2130 IC which supports USB interface. Winstar also offers Resistive Touch Panels (RTP) for WF50F HDMI signal series, available part number WF50FSYFGDHTV (RTP touch screen).

The supply voltage for LCM (VDD) of WF50FSYFGDHGV is 5V, glare surface glass, aspect ratio 5:3, and contrast ratio 1,000:1 (typical value). It can be operated at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

Size 5 inch
Dot Matrix 800 × 3(RGB) × 480
Module dimension 120.7 x 75.8 x 23.2 (Max) mm
Active area 108.0 x 64.8 mm
Pixel pitch 0.135 x 0.135 mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio “05:03”
Backlight Type LED, Normally White
Controller IC TFP401
Interface  HDMI (only for DVI)
CTP IC ILI2130 or Equivalent
CTP FW Version 0x07.0x00.0x00.0x00.0xA1.0x25.0x50.0x00
CTP Resolution 16384*16384
CTP Interface USB
Touch Panel With CTP (PCAP)
Surface Glare


For more information, please contact Nijkerk Electronics.
