Winstar adds 4 new displays to its product range. The displays are suitable for home appliances, electronics divices, catering equipment, medical measuring instruments, measuring equipment, medical applications, smart home applications and intelligent building systems. Below each display and its specifications are described.
- 3.4″ Circular Screen IPS TFT Display
- 3.9″ Bar Type Touch TFT Display For HDMI Signal
- 7″ High Brightness IPS TFT Display with PCAP
- 1.92″ 160×128 OLED Display Module
3.4″ Circular Screen IPS TFT Display
WF0340ATYAB7MNN0 is a 3.4-inch Circular Screen IPS TFT Display with a resolution of 800×800 dots. It uses IPS (In-plane Switching) technology to achieve fast and stable response time, higher frequency transmittance, better color performance, and wider viewing angles of up: 85/ down: 85/ left: 85/ right: 85 degrees.
The circular TFT LCD display is suitable for home appliances, electronic alarm clocks, cocktail machines, and other products requiring circular display screens.
- Size: 3.4-inch
- Dot Matrix: 800 × 800 dots
- Module Dimensions: 94.9 × 96.95 × 2.22 mm
- Active Area: 87.6 × 87.6 mm
- Viewing Angles: 85/85/85/85 (IPS)
- Driver IC: ILI9881C
- Interface: MIPI
- Touch Panel: Without Touch Panel
- Surface: Anti-Glare
- Brightness: 400 cd/m2
- Operating Temperature: -20~+70℃
3.9″ Bar Type Touch TFT Display For HDMI Signal
WF39DTLFSDHG0 is a 3.9-inch bar-shaped HDMI TFT display. It features a projected capacitive touch panel (PCAP) with 5-point multi-touch. The module adopts TFP401 controller IC, supporting HDMI interfaces (DVI signal) compatible with Raspberry Pi.This HDMI TFT LCD is suitable for applications in electronic devices, catering equipment, medical measuring instruments, etc.
- Size:3.9-inch
- Dot Matrix: 480 × 128 dots
- Module Dimensions: 125.0 × 66.5 × 13.95 mm
- Active Area: 95.04 × 25.34 mm
- Viewing Direction: 6 o’clock
- Gray Scale Inversion Direction: 12 o’clock
- Controller IC: TFP401
- Interface : HDMI(only for DVI)
- Touch Panel: Projected Capacitive Touch Panel (PCAP)
- Surface: Glare
- Brightness: 400 cd/m2
- Operating Temperature : -20~+70℃

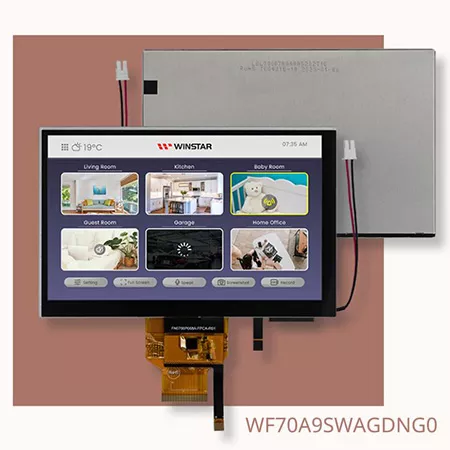

7″ High Brightness IPS TFT Display with PCAP
WF70A9SWAGDNG0 is a 7 inch IPS TFT-LCD with a Projected Capacitive Touch Panel (PCAP). It has features of high brightness and a wide operating temperature range. It boasts a resolution of 800×480 pixels, a high contrast ratio of 1,000:1 (typical value), and a high brightness of 800 nits (typical value).
The module can operate at the temperature range from -30℃ to +80℃, and its storage temperature covers from -40℃ to +85℃. It’s perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, plastic bottle recycling machine, automated car park payment machine, etc.
- Size: 7-inchDot Matrix: 800 × 480 dots
Module Di - ensions: 165.8 × 106.61 ×8.5 mm
- Active Area: 152.40 × 91.44 mm
- Viewing Angles: 80/80/80/80 (IPS)
- Driver IC: HX8249-A + HX8678-C
- Interface: RGB
- Touch Panel: Projected Capacitive Touch Panel (PCAP)
- Surface: Glare
- Brightness: 800 cd/m2
- Operating Temperature : -30~+80℃
1.92″ 10×128 OLED Display Module
WEO160128B is a 160×128 COG graphic OLED display module with a diagonal size of 1.92 inches. This model is built-in with CH1120 IC, supporting 6800/8080 parallel interfaces, I2C, and 4-wire SPI serial interfaces.
This OLED module is suitable for medical applications, smart home applications, intelligent building systems (home and office), control panels for lighting or heating, smartwatches, and fitness watches.
- Type: Graphic
- Structure: COG
- Size: 1.92-inch
- Dot Matrix: 160 × 128 dots
- Module Dimensions: 34.5 × 48.8 × 1.41 mm
- Active Area: 28.908 × 39.34 mm
- Display Color: White, Yellow
- Drive Duty: 1/128 Duty
- Grayscale: 4 bits
- IC: CH1120
- Interface: 6800, 8080, SPI, I2C
If you want more information or if you have any questions, please contact Nijkerk Electronics!
