The new TUC serie common mode inductors from Tokyo Parts can replace the classic common mode inductors. Full automated winding assures stable operation and better consistency of product characteristics. It also comes in smaller volume and lighter weight so , in some cases, one TUC part can replace two classic common mode inductors.
Features
- Closed magnetic circuit structure, low magnetic leakage, strong EMI resistance, and excellent frequency impedance characteristics.
- Reduce DC resistance by more than 20%, reduce copper loss, and improve the efficiency of the power supply.
- Effectively reducing the distributed capacitance of the coil, with a wider frequency band noise attenuation characteristic.
- Excellent noise attenuation characteristics can reduce the number of AC common mode inductors used.
Application

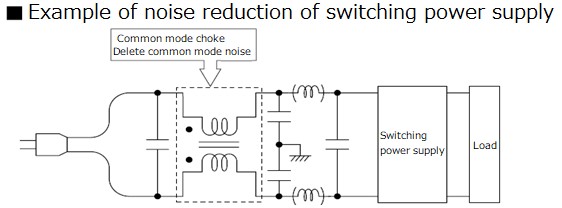

AC common mode filtering for household appliances, OA machines, AV related machines, general power supplies, universal SW power supplies, etc.
Product Lineup
| Type | Dimensions
（L*W*Hm |
Pitch
mm |
Terminal length
mm |
Rated
current A |
Inductance
mH MIN |

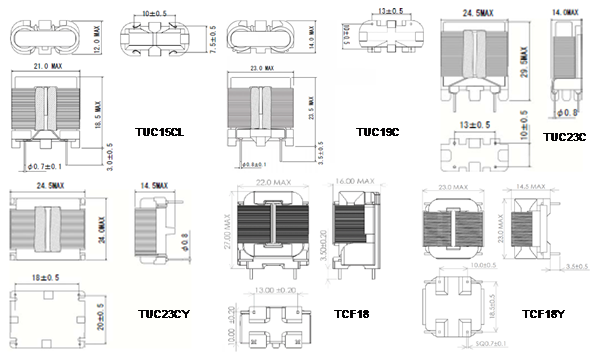

| TUC15CL | 21.0*12.0*18.5 | 7.5*10 | 3.0±0.5 | 1.2~2.2 | 5.0~12 |
| TUC19C | 23.0*14.0*23.5 | 10*13 | 3.5±0.5 | 1.4~3.3 | 2.5~12 |
| TUC23C | 24.5*14.0*29.5 | 10*13 | 3.5±0.5 | 2.5~6.0 | 5.0~20 |
| TUC23CY | 24.5*24.0*14.5 | 20*18 | 3.5±0.5 | 2.5~6.0 | 5.0~20 |
| TCF18 | 22.0*16.0*27.0 | 10*13 | 3.5±0.5 | 1.4~4.0 | 5.0~42 |
| TCF18Y | 23.0*23.0*14.5 | 18*10 | 3.5±0.5 | 1.4~4.0 | 5.0~42 |
Datasheet: on demand. Please email to alain.huysmans@nijkerk.be
