|16 avril 2025

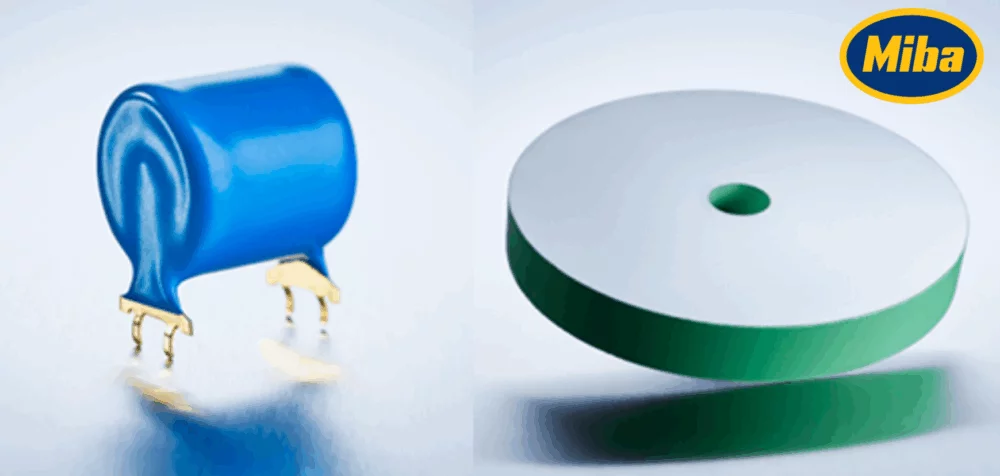

The carbon disc resistor from Miba is developed to provide an optimal solution for many applications in power electronics business. The resistors are non-inductive and capable of withstanding transient high-voltage impulses. These carbon disc resistors are used in dumping braking circuits, overvoltage protection and discharge applications.
CSR series
- PCB mounting
- Power range of 3,5 to 6,5W
- 100 % active materials
- Low inductance, suitable for HF applications
- Compact size
- Epoxy coating with good humidity resistance
Applications: Electrical transmission, traction, pulse power supply, inductive heating.
Datasheet can be found here.
CD series
- configurable number of disks
- Power range from 9 to 26W per disk.
- 100 % active materials
- Non-Inductive design , suitable up to Mega Hertz frequency
Applications: Electrical transmission, traction, pulse power supply, inductive heating.
Datasheet can be found here.
If you have any question or if you want additional information, please contact Nijkerk Electronics!
